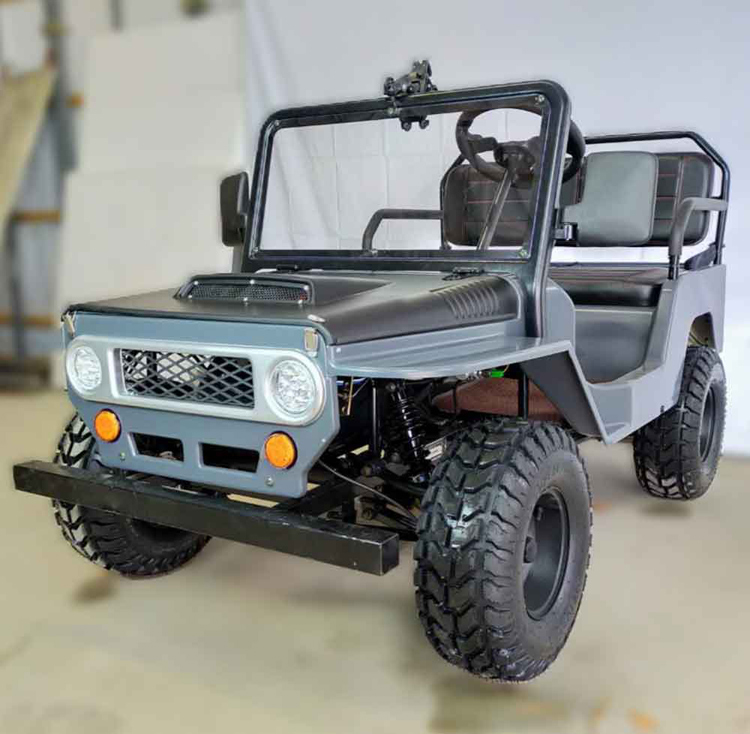

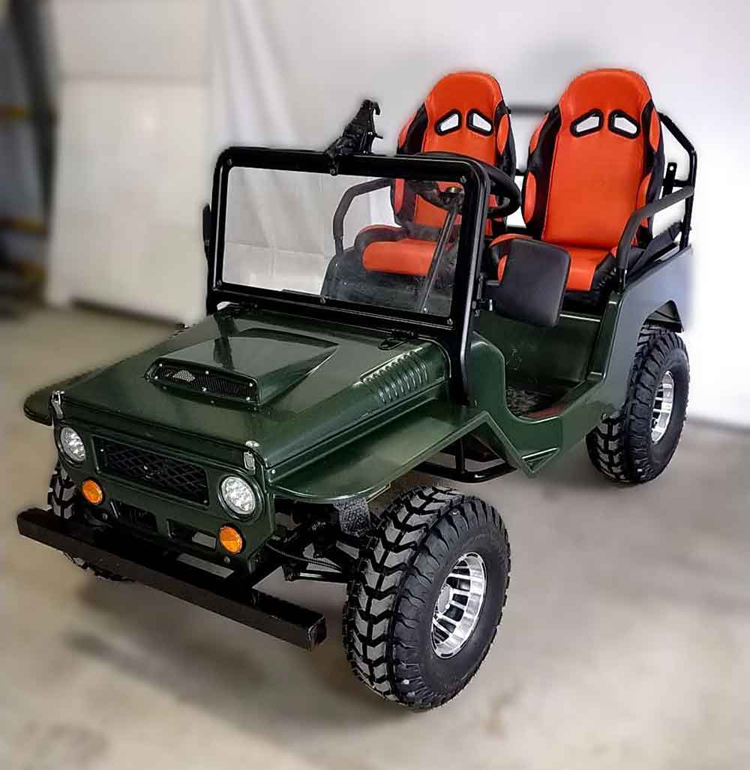

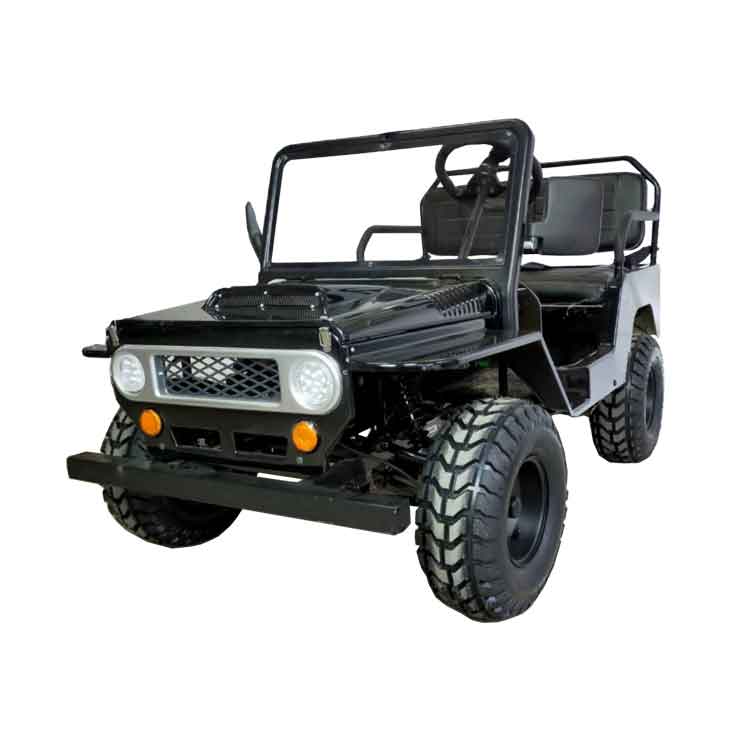

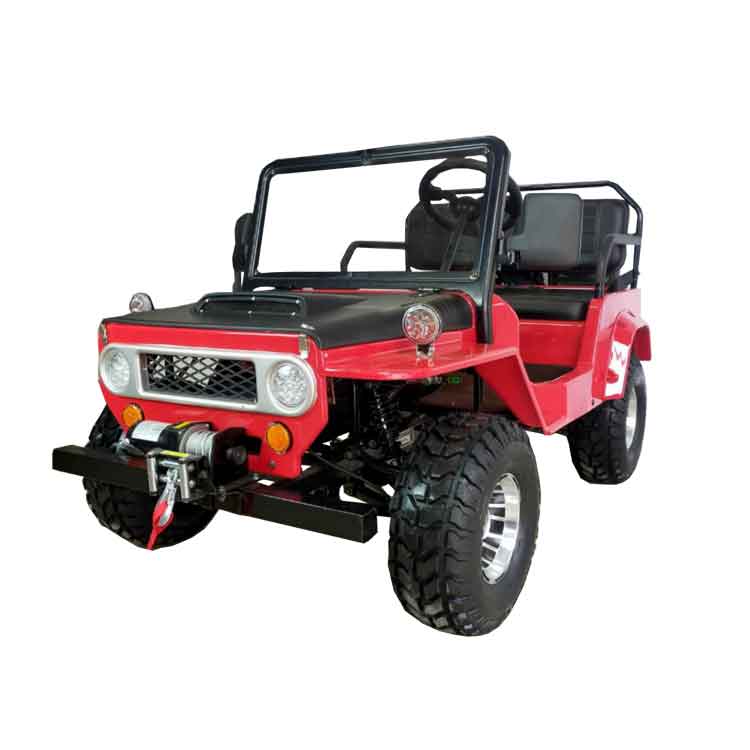

800W-1200W Electric mini Toyota Willy Jeep
Specifications
Motor ,Battery option: | 800W BrushLess , 48V 20AH (lead -acid battery) | 1200W BrushLess , 60V 20AH (lead -acid battery) | ||||
1200W BrushLess 60V 42AH (lithium battery) | ||||||
Gear: | F/N/R | |||||
suspension: | F:single independent suspension R:single independent suspension | |||||
Max.Loading capacity: | 230kgs | Min.ground clearance: | 100mm | |||
Break type(F/R): | disc/disc | Transimission | Differential driving axle | |||
Chassis | ||||||
Front wheels: | 4.80-R8 | Rear wheels: | 4.80-R8 | |||
weight | 200/180KG | wheelbase: | 1240mm | |||
Color: | Army green | product dimensions: | 2000x1000x740mm | |||
carton dimensions: | 1915*1205*545(take off wheel) | |||||
Conveyance:
| Qty/20' GP:24pcs Qty/40' GP:48pcs Qty/40' HQ:56pcs | |||||
Optional
| Wheel eyebrow |
| Spare wheel |
| Spare tank |
| Rear bumper with ball |
| Windshield |
| Safety belt and leather seat |
| seat can be removed front and back |
| Overland tire(steel) 19*7-8 |
| 18*7-8 (alloy) |
| hand brake |
| LED High Light: |
| Electric winch |
Color sample of the product
