1000w Electric Cargo Tricycle with Euro 5
Specifications
Optional colors:red, blue, green, yellow, grey, white
Vehicle code:91831403
L×W×H(mm):2985×1180×1360
Cargo Box size(mm):1500×1100×490
Wheel base(mm):2030
Wheel track(mm):950
Minumum ground clearance(mm):≥150
Minimum turning radius(m):≤4
Curb weight(kg):245
Rated load (kg):400
Max speed (m/h):30
Grade ability(%):≤20
Battery:60V45AH-100AH
Motor, Controller(w):60V1000W
Range per charging(km):50-110
Charging time(h):6～8h
Front shock absorber:φ43 Drum shock absorber
Rear shock absorber:50×120 seven pieces leaf spring
Front/Rear tyre:3.75-12/3.75-12
Rim type:steel
Handlebar type●
Front/Rear brake type:Front/Rear:Drum
Parking brake:Hand brake
Rear axle structure:Integrated rear axle
Remote control key：－
Alarm:●
Wiper:－
Emark Tempered front windshield：－
Vehicle lamps：Normal light (48V)
Water cup stand：－
High and low speed function：●
reversing light：●
LCD meter:●
Instructions:●
Battery cable:●
Roof:－
Safety Belt:－
Storage Box:●
USB charging port:●
SKD:50Units/40HQ
15 Units/20GP
SKD(Steel Frame):32 Units/40HQ
12 Units/20GP

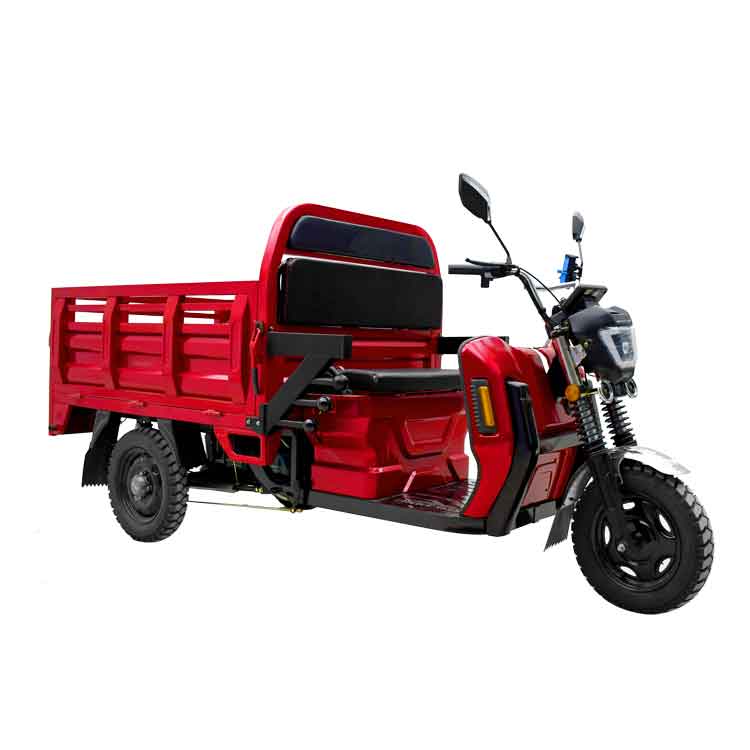

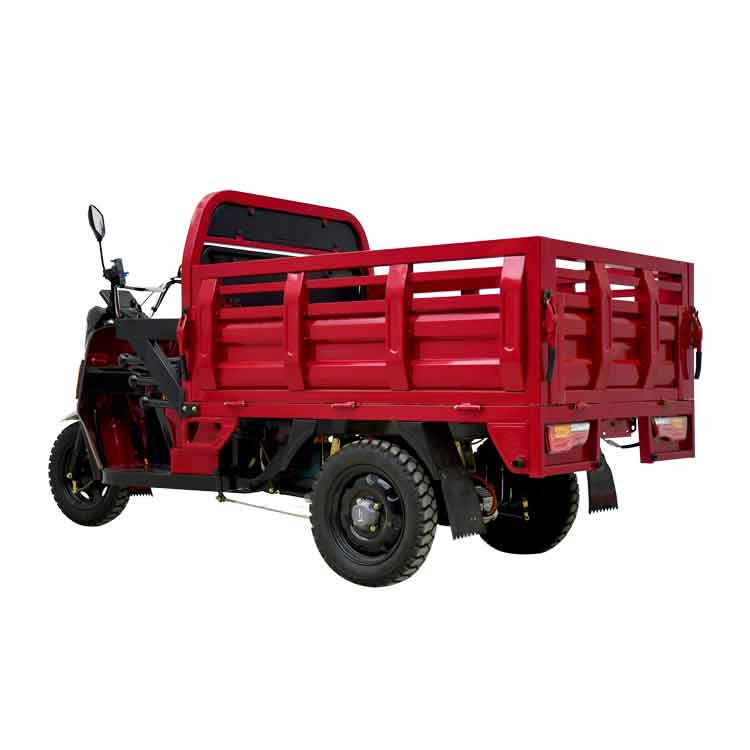

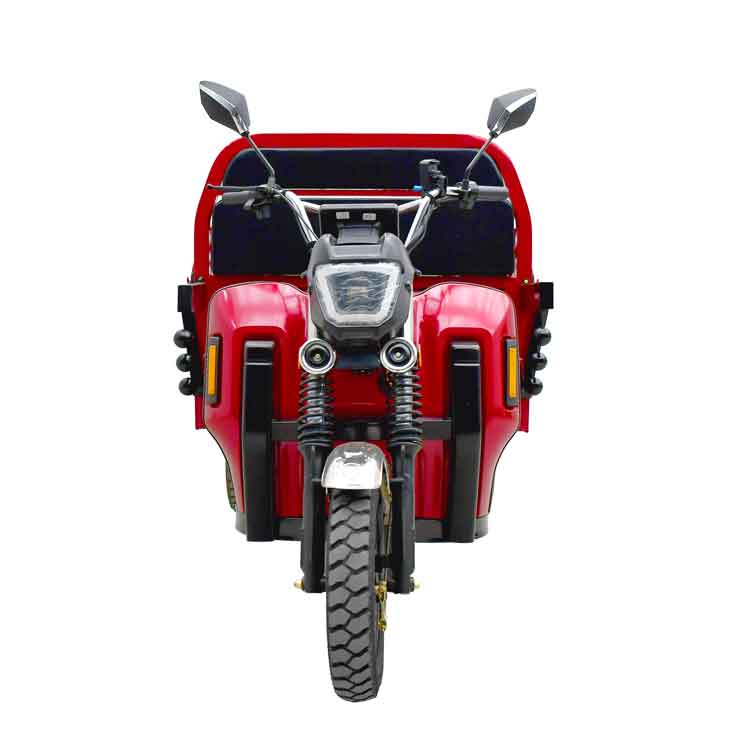

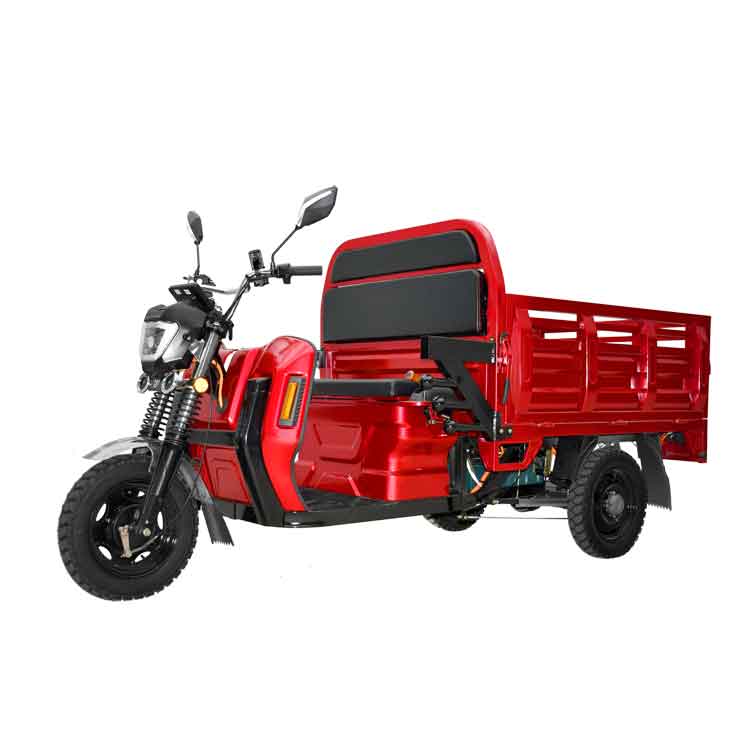

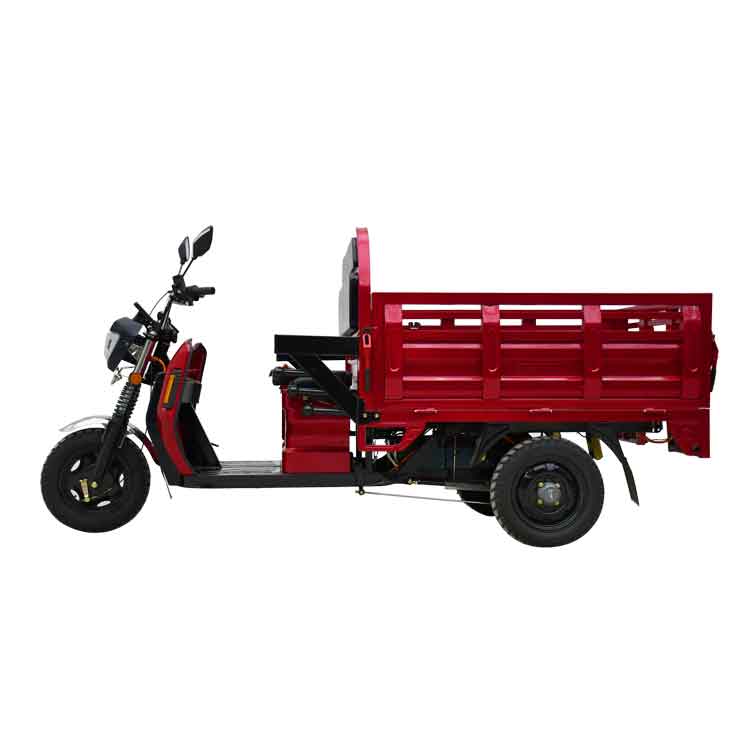

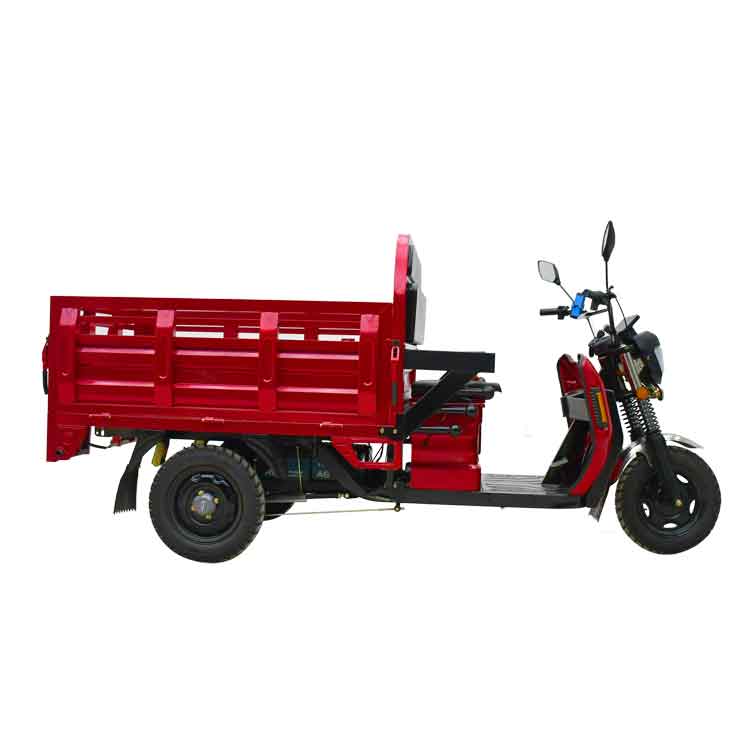

Detail photos of the product
