36v 12ah Lead-aicd Electric Mini Quad Atv
Specifications
| MODEL NO. | ELECTRIC ATV E7 |
| MOTOR | Brush motor CHAIN DRIVE |
| MAX output power | 1000W |
| MAX SPEED | 25KM/H |
| BATTERY | 36V 12AH LEAD-AICD |
| Wheel | F4.10-6/ R13x5.00-6 OFF ROAD |
| Brake | front/rear disc brake |
| Front shock | double a swing arms |
| Rear shock | mono shock |
| Product size | 1120*680*670MM |
| Net whight | 48KGS |
| Seat height | 470MM |
| Packing size | 1000*580*440MM |
| Loading Quantity | 110pcs/20FT 276pcs/40HQ |
Optional
| 1. 48V12AH LEAD-ACID |
| 2. shock absorption cover |
| 3. backrest |

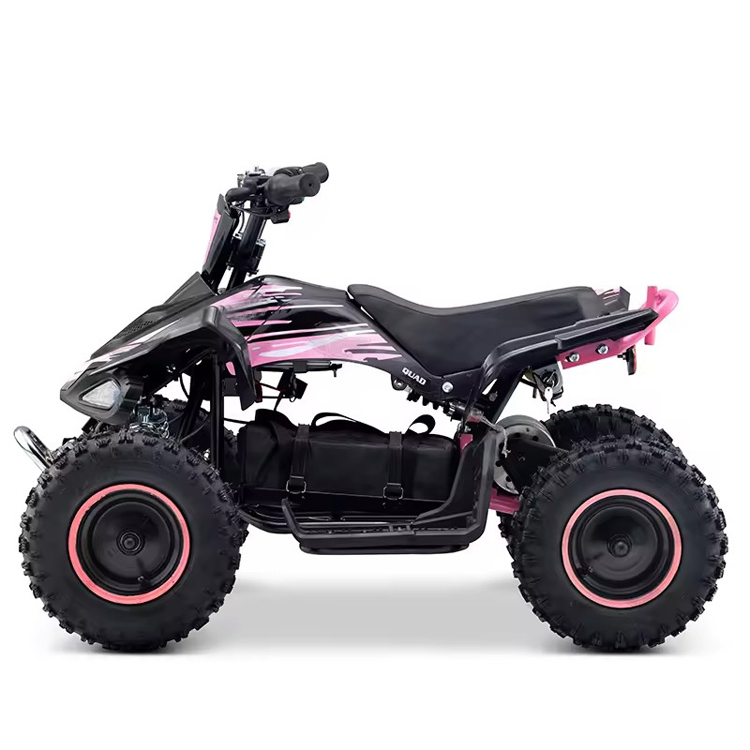

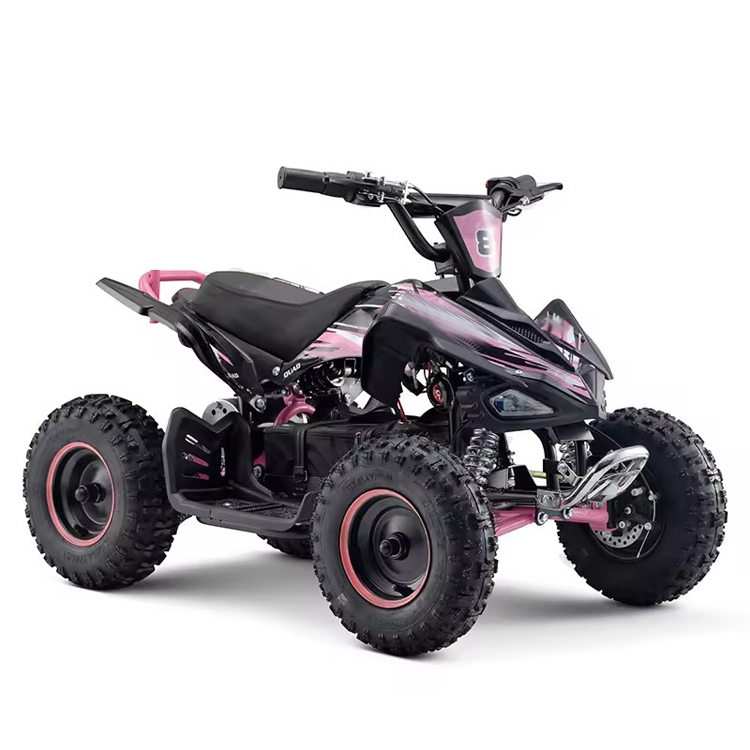

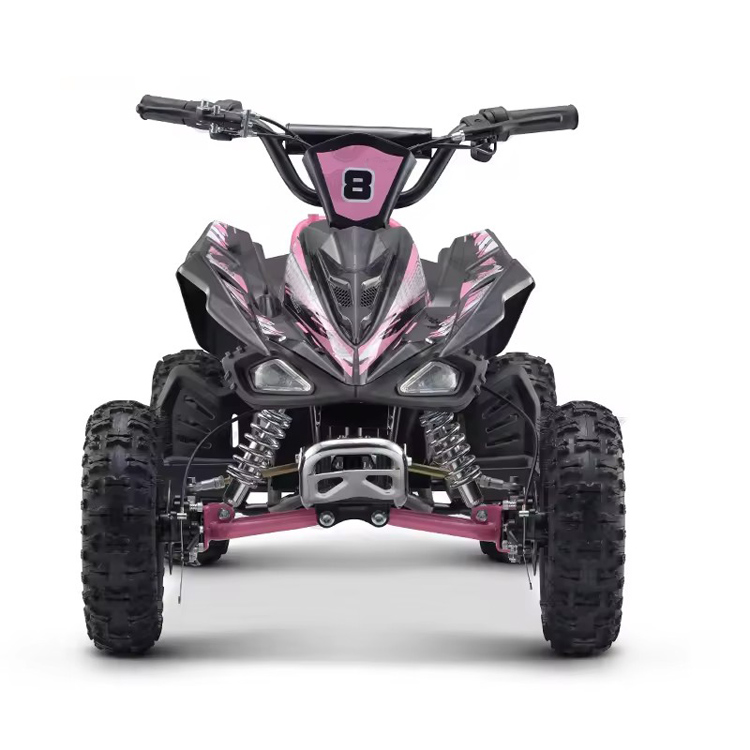

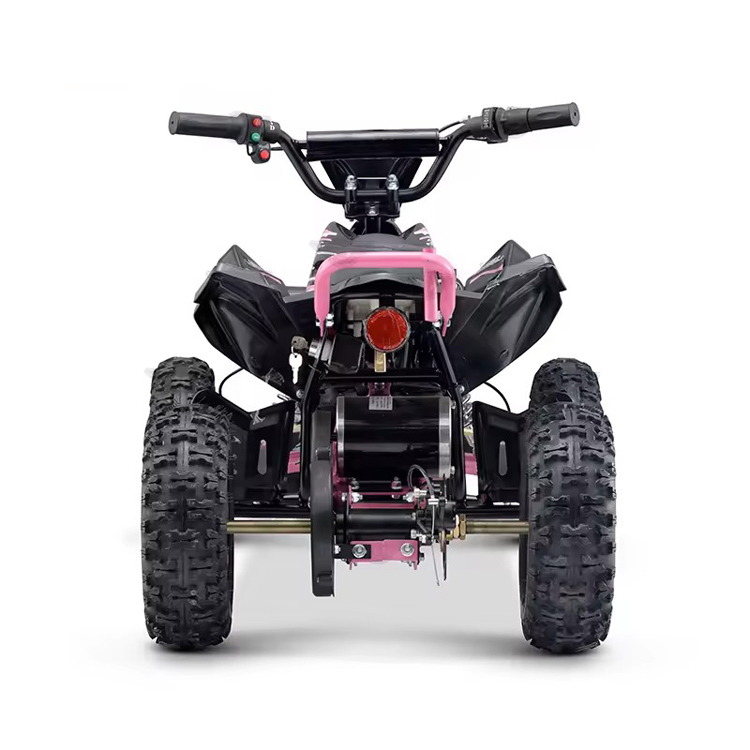

Detail photos of the product
