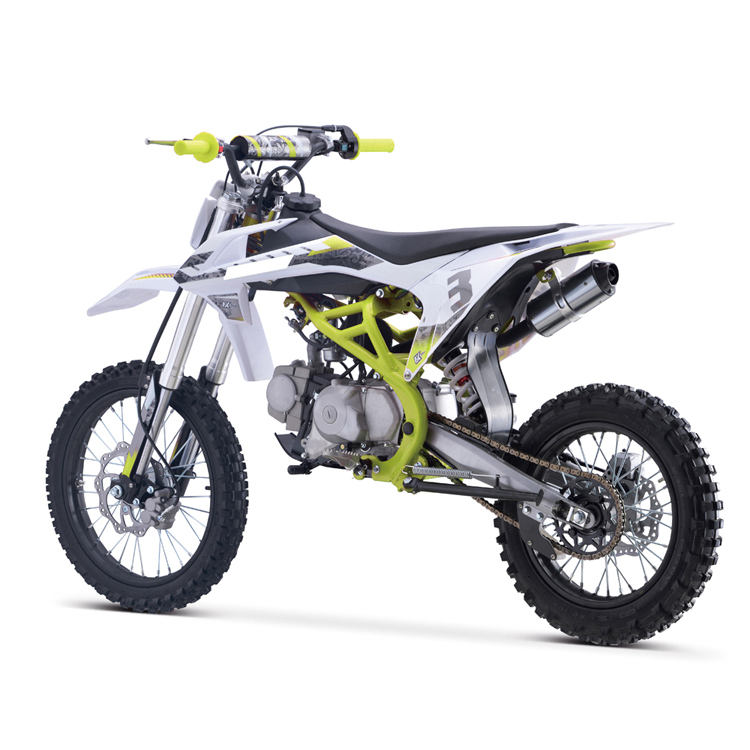

110cc 125cc 140cc Off Road 4 Stroke Sport Gasonline Dirt Bike
Specifications
| ENGINE： | 125CC, SINGLE CYLINDER, 4-STROKE, AIR COOLED |
| TANK VOLUMN: | 4.5 L |
| BATTERY: | MAINTENANCE FREE LEAD ACID BATTERY |
| TRANSMISSION： | 4-GEAR MANUAL SHIFT N-1-2-3-4 |
| FRAME MATERIAL: | PERIMETER CRADLE TYPE STEEL FRAME |
| FINAL DRIVE: | DRIVE TRAIN |
| WHEELS: | FT: 70/100-14 – RR: 90/100-12 |
| FRONT&REAR BRAKE SYSTEM: | SINGLE PISTON CALIPER, 210MM DIS CSINGLE PISTON CALIPER, 190MM DISC |
| FRONT&REAR SUSPENSION: | NON-ADJUSTABLE INVERTED 650MM FORKS, TRAVEL – 140MM, TUBE – 33MM /COIL SPRING HYDRAULIC SHOCK – 310MM , TRAVEL – 54MM |
| FRONT LIGHT: | OPTIONAL |
| REAR LIGHT: | OPTIONAL |
| DISPLAY: | OPTIONAL |
| OPTIONAL: | 1. ELECTRIC STARTER 2. 140CC ZS ENGINE OIL COOLED 3. 160CC ZS ENGINE OIL COOLED 4. WHEELS 14"/12" 5. KKE USD FRONT FORKS & KKE ADJUSTABLE REAR SHOC 6. ALLOY MUFFLER & STAINLESS STEEL EXHAUST 7. FRONT LIGHT |
| SEAT HEIGHT: | 820MM |
| WHEELBASE: | 1200MM |
| MIN GROUND CLEARANCE: | 300MM |
| GROSS WEIGHT: | 85KGS |
| NET WEIGHT: | 75KGS |
| BIKE SIZE: | 1740*740*1080MM |
| PACKING SIZE: | 1590*375*760MM |
| QTY/CONTAINER 20FT/40HQ: | 63/132 |

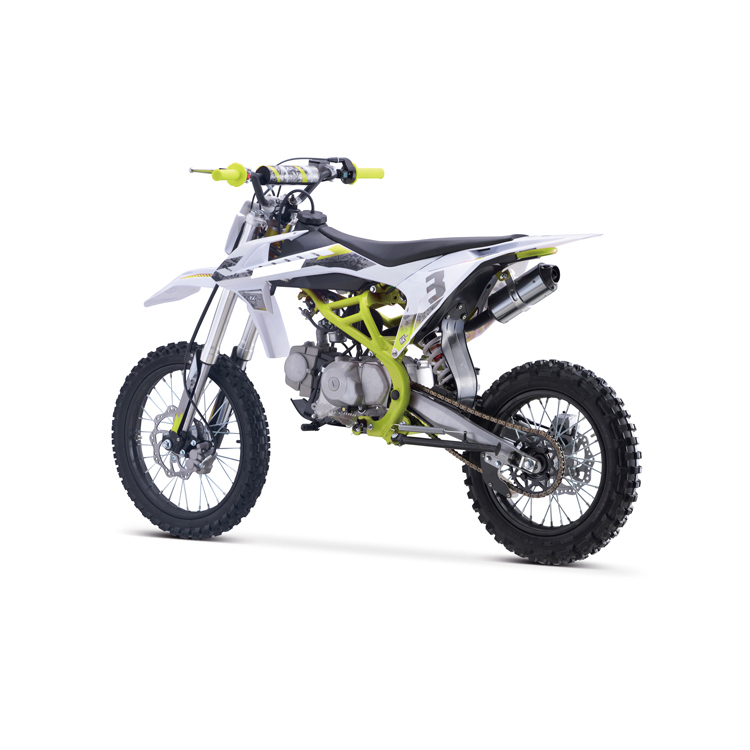

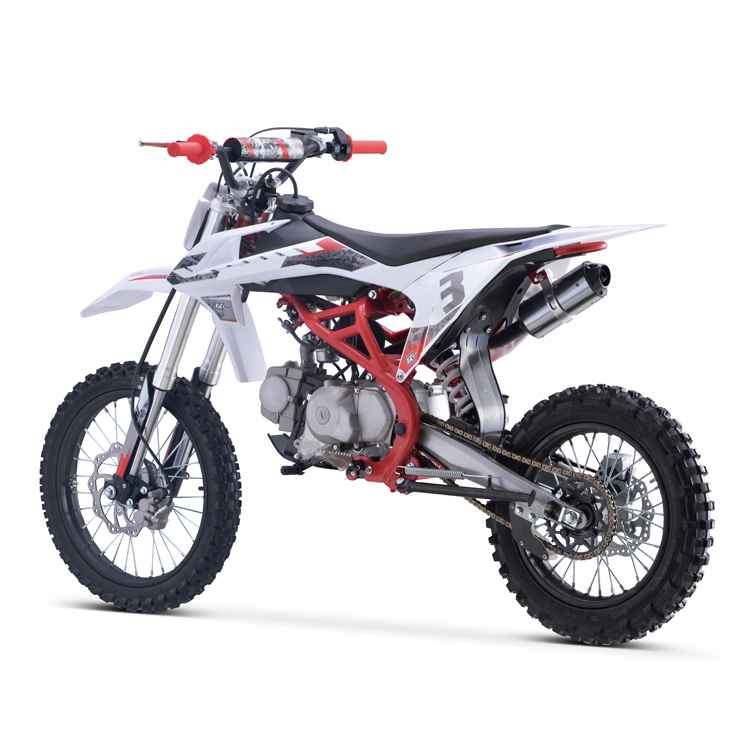

Color sample of the product
