China 50cc Gas Scooter with Euro 5

Specifications

Drive systemBelt drive

Front and rear shock Front hydraulic rear spring shock

Electric and speedmeter Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

Lighting system Front headlamp,front and rear winker,rear tail light

Exhaust system Mute exhaust

Switch control system Function left and right swtich

Cylinder diameter 39mm

Piston stroke 41.4

Battery type 12V7A

Max power and rotate speed 2.2KW(3.0HP)/7500rpm

Max torque and rotate speed 3.01/5000(N.m/rpm)

Minimum ground clearance(mm) 95

Compression ratio 10.2:1

Unladen mass(kg) 93

Load capacity(kg) 150

Economic oil consumption ≤2.0

Climbing capacity Angle: 30 degrees

Minimum turning radius 1750MM

Speed changeV type belt stepless speed change

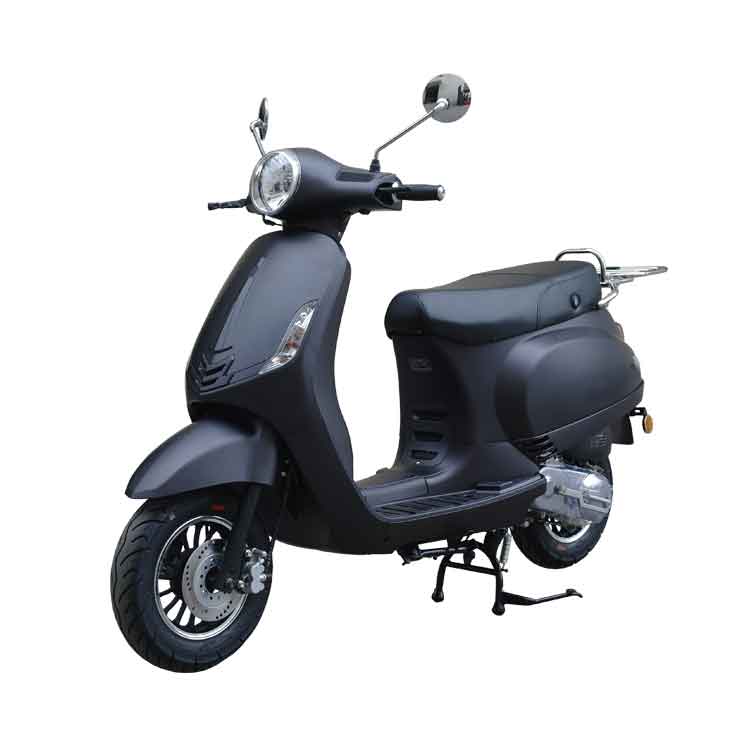

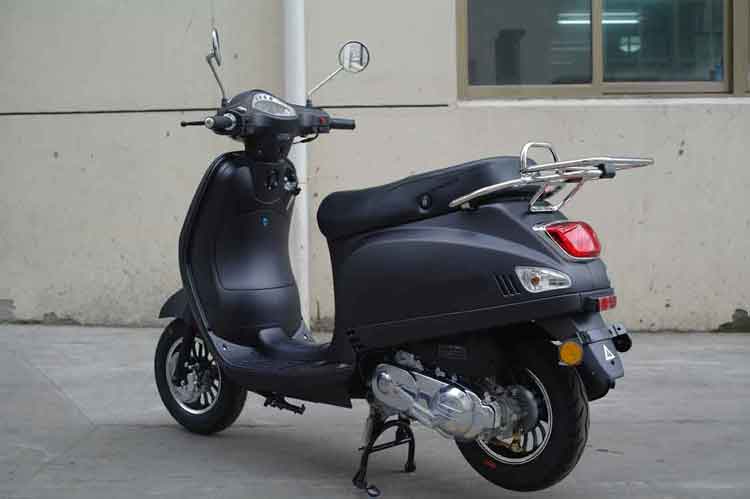

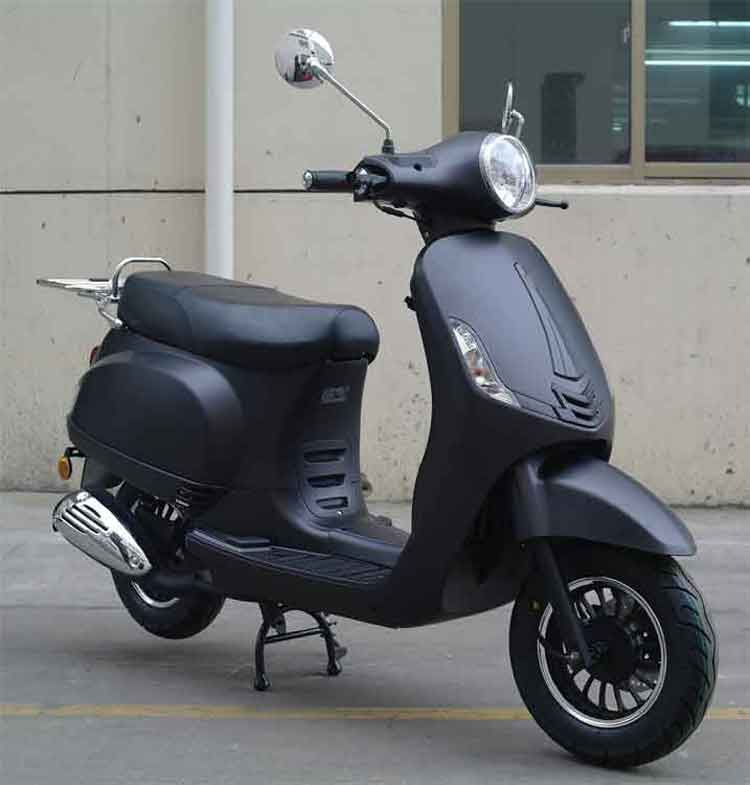

Multi-angle pictures ofthe product
